SEIKO edito Kioskprinter             Series

BACK



Features

■  Power: 24V +/- 10% (external Power supply)
■  Printspeed max.: 200 mm/sec.
■  Paper width: 58mm to 83 mm
■  Interfaces: USB / RS232 / Ethernet
■ Max. Paperroll- diameter: 180 – 200 mm
■  Lifetime Head: 200 km Abrasion (CAPM347)
■  Lifetime Cutter: 1.5 Mio. Cuts (CAPM347)
■ Operating temperature: -20 – 70° C.(no condension)
■  Size Basis: 128 mm x 75,5 mm
■  Size Module: 1 or 3 128 mm x 50mm


Datasheet (PDF)

Available Models

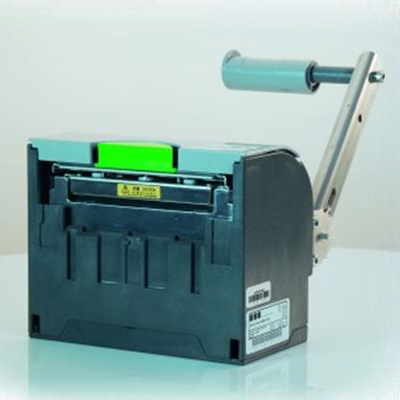

Base Model

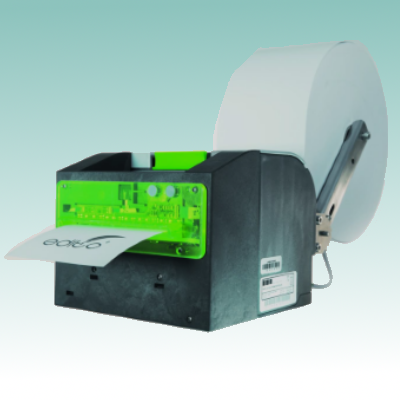

Output Control Model

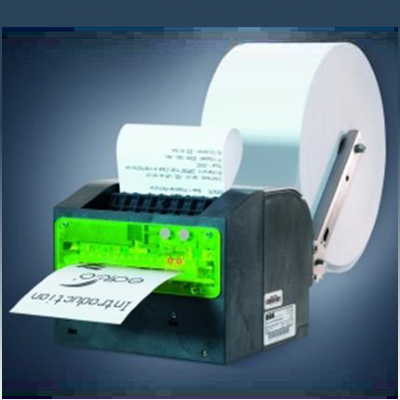

Presenter Model

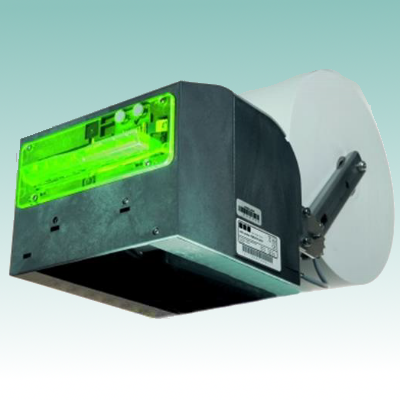

Presenter & Retractor
​​​​​​​Model

Interfaces (all models)

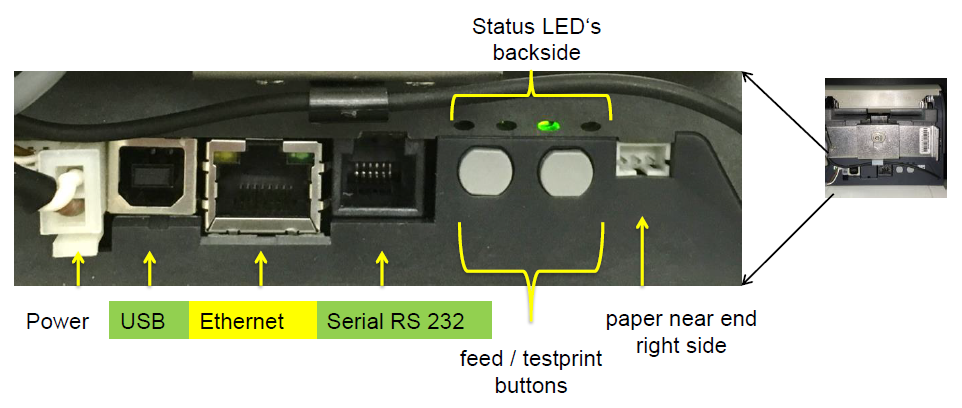

Interface connectors are located on the backside of the printerunit 2 Options are available:
■  USB & RS232
■  USB & RS232 & Ethernet

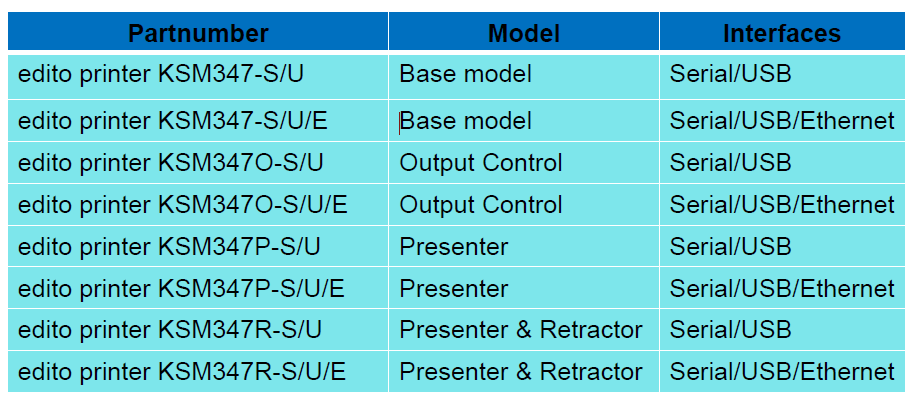

Model Typenumbers
