Description:

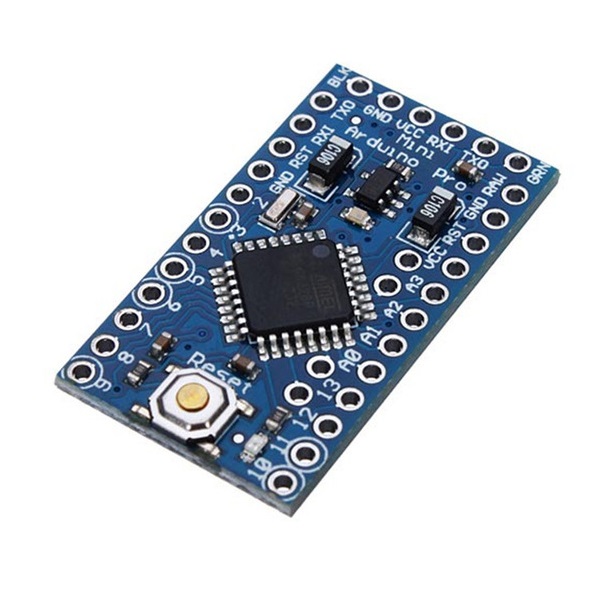

The Pro Mini is a microcontroller board based on the ATmega328 for Arduino. With 14 digital input / output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. Six pin header can be connected to an FTDI cable to provide USB power and communication to the board.

Feature:

■  Using ATmel Atmega328P-AU MCU
■  TTL level serial port transceiver RX / TX
■  Six PWM ports D3, D5, D6, D9, D10, D11
■  Supporting serial download
■  Supporting external DC 2.4V ~ 12V power
■  Supporting 12V (or below) battery power

Specification:
■  Microcontroller: ATmega328
■  Operating Voltage: 3.3V
■  Input Voltage: 3.35V ~ 12V
■  Digital I/O Pins: 14 (of which 6 provide PWM output)
■  Analog Input Pins: 8
■  DC Current Per I/O Pin: 40mA
■  Flash Memory: 32KB (of which 2KB used by bootloader)
■  SRAM: 1KB
■  EEPROM: 512bytes
■  Clock Speed: 8MHz
■  Size: 33.3 x 17.6mm

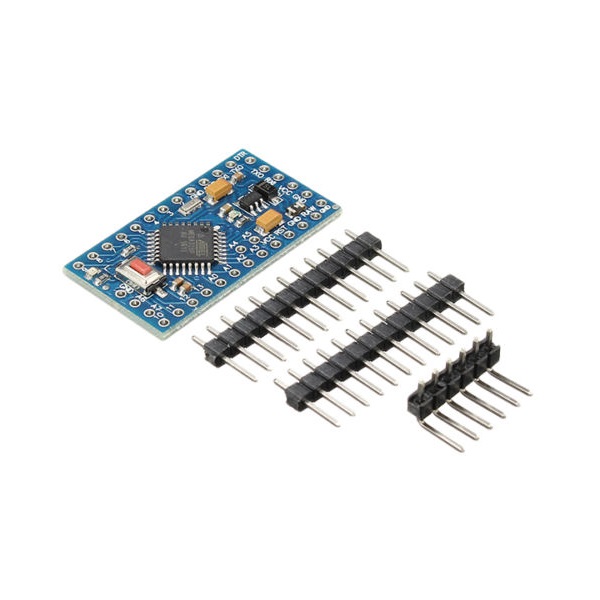

Package included: 1 x 3.3V 8MHz Pro Mini(With Pins)
