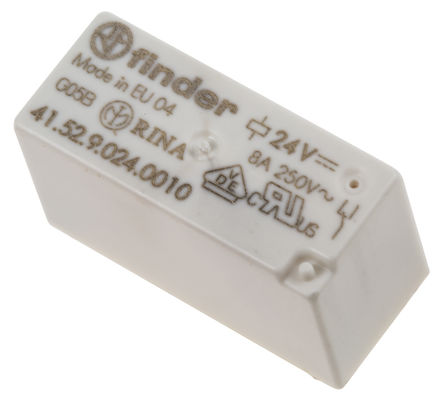

■ Relay type: electromagnetic

■ Contacts configuration: DPDT

■ Rated coil voltage: 24V DC

■ AC contacts rating @R (at resistance load): 8 A / 250 VAC

■ DC contacts rating @R (at resistance load): 8 A / 30 VDC

■ Contact current max.: 15A

■ Switched voltage: max 400V AC, max 220V DC

■ Relay variant: miniature

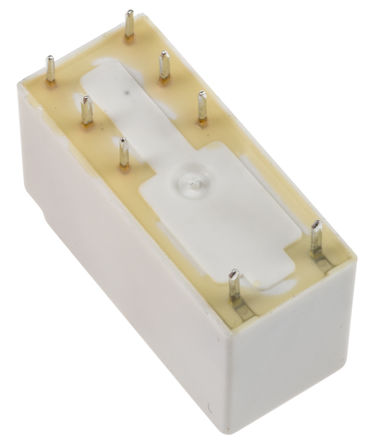

■ Mounting: PCB

■ Coil resistance: 1.44kΩ

■ Coil voltage: 16.8...36V DC

■ Body dimensions: 29 x 12.5 x 15.7mm

■ Coil power consumption: 400mW

■ Mechanical durability: 3000000cycles

■ Operating temperature: -40...85°C

■ Relay series: 41.52

■ Contact material: AgNi

■ Terminal pitch: 5mm
