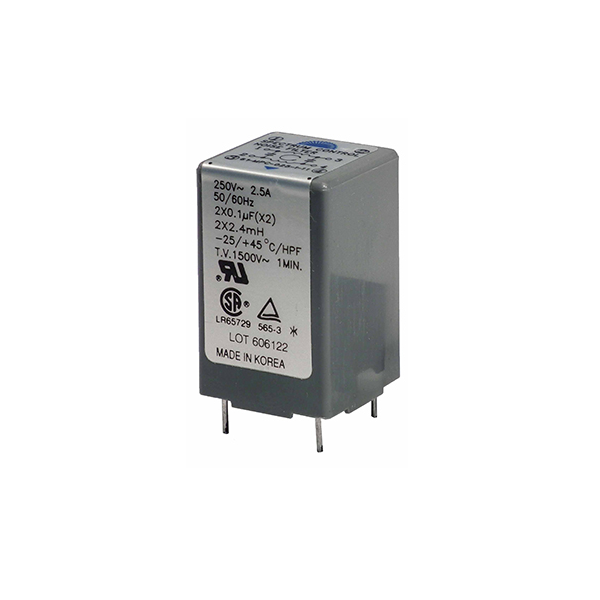

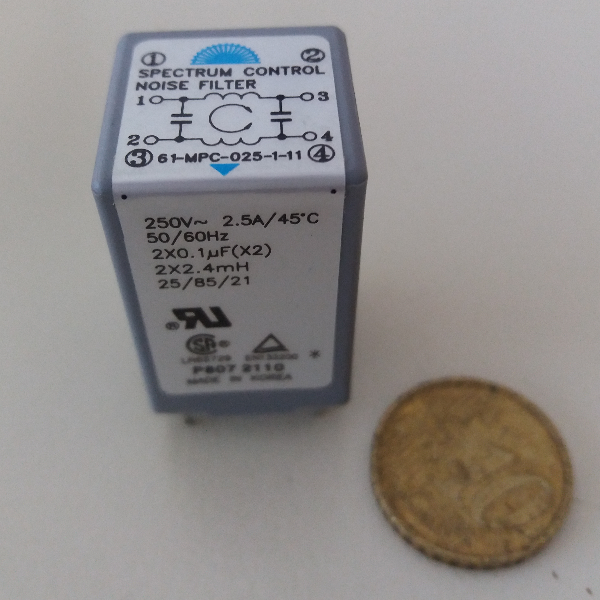

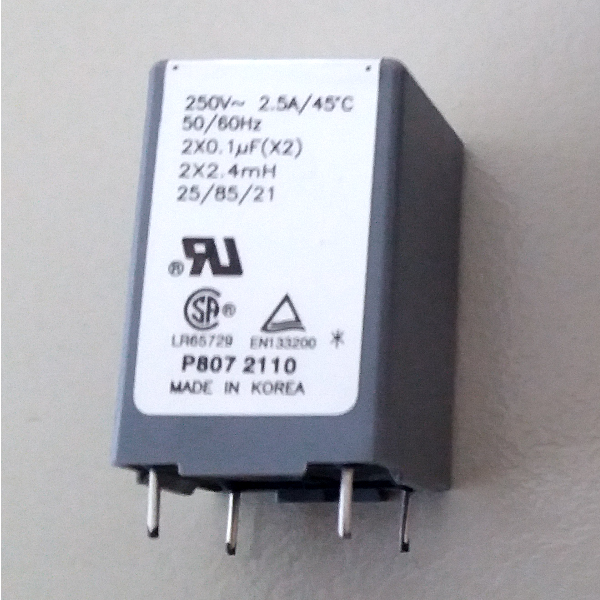

61-MPC Series

Rugged construction design enables parts to perform in industrial environments. The 61-MPC series is ideally suited for products that must conform to FCC part 15 regulations. Agency approvals: UL recognized, CSA certified, TUV approved. Tested and found to be in accordance with VDE 0565 Part 30.

■  Rated Voltage (@ 50/60Hz): 250VAC

■  Rated Current: 2.5A

■  Leakage Current (Max.): 0.1mA

■  Inductance (L1): 2.4mH

■  Temperature Rise (Max.): 40°C
