TRANSISTORS - SERIES BFxxx
BF115 NPN 30V 30mA 145mW TO-72
BF167 NPN 30V 30mA 150mW TO-72
BF173 NPN 25V 30mA 200mW TO-72

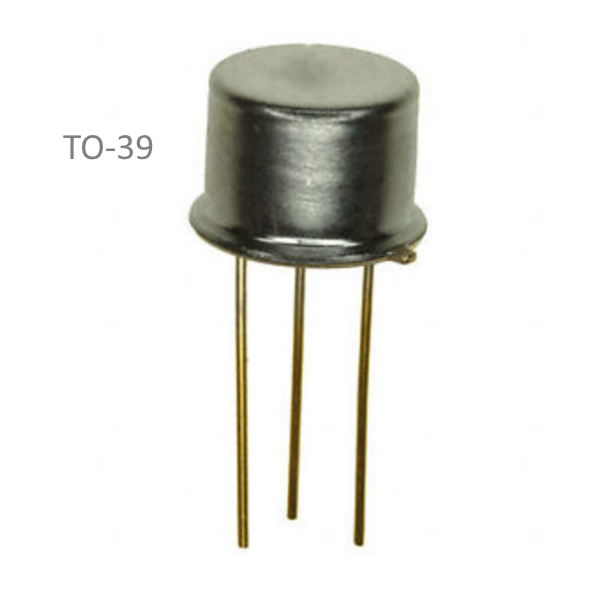

BF178 NPN 185V 50mA 600mW TO-39
BF192
BF197 NPN 30V 25mA 200mW TO-92
BF198 NPN 30V 25mA 300mW TO-92
BF199 NPN 40V 25mA 250mW TO-92 0,15€
--------------------------------------------------------------------------------------
BF224 NPN 45V 50mA 36mW TO-92
BF240 NPN 40V 25mA 350mW TO-92
BF254 NPN 20V 30mA 250mW TO-92
BF255 NPN 20V 30mA 250mW TO-92
BF256 NPN 30V 10mA 250Mw TO-92 0,30€
BF257 NPN 160V 100mA 5W TO-39 0,30€
--------------------------------------------------------------------------------------
BF311 NPN 35V 40mA TO-92
BF337 NPN 200V 100mA 800W TO-39 0,60€
BF338 NPN 200V 100mA 800W TO-39
BF391 NPN 200V 500mA 650mW TO-92
--------------------------------------------------------------------------------------
BF414 PNP 30V 25mA 300mW TO-92
BF422 NPN 250V 50mA 800mW TO-92 0,15€
BF423 PNP 250V 50mA 800mW TO-92 0,15€

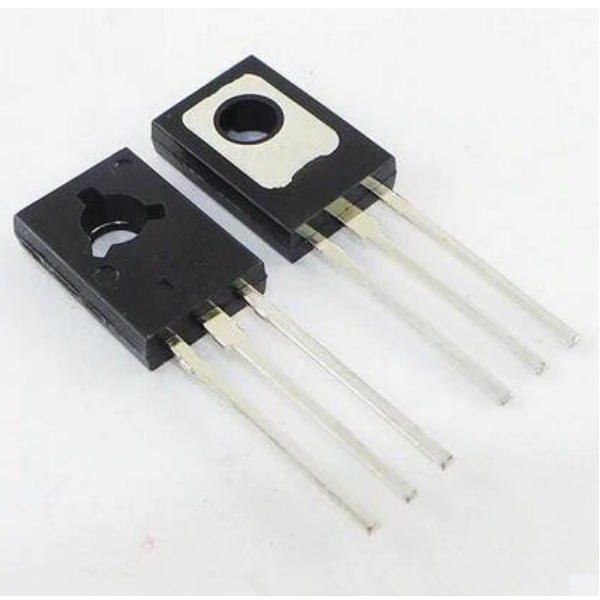

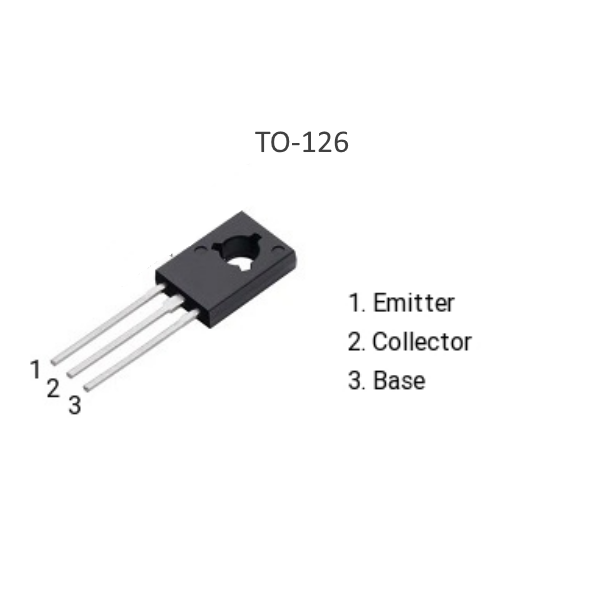

BF458 NPN 250V 100mA 6W TO-126
BF459 NPN 300V 100mA 10W TO-126
BF470 NPN 250V 50mA 1,25W TO-126
BF472 NPN 300V 50mA 1,25W TO-126
BF487 NPN 400V 50mA 830mW TO-92
BF495 NPN 30V 50mA 300mW TO-92
--------------------------------------------------------------------------------------

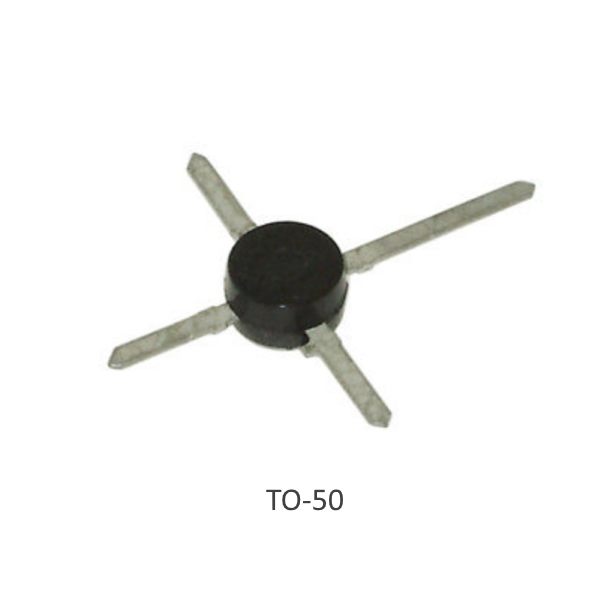

BF679 PNP 40V 30mA 160mW TO-50
BF680 PNP 40V 30mA 160mW TO-50
BF681 PNP 35V 30mA 160mW TO-50
--------------------------------------------------------------------------------------

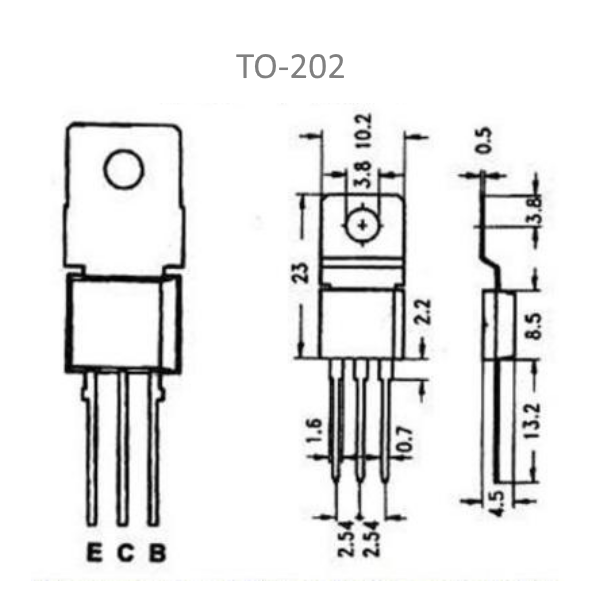

BF761 PNP 300V 500mA 2W TO-202
BF763 NPN 12V 500mA TO-92
--------------------------------------------------------------------------------------
BF869 NPN 250V 100mA 5W TO-202
BF870 PNP 250V 100mA 5W TO-202
BF871 NPN 300V 100mA 5W TO-202
BF872 PNP 300V 100mA 5W TO-202
--------------------------------------------------------------------------------------
BF959 NPN 20V 100mA 1,5W? TO-92
BF967 PNP 30V 20mA 160mW TO-119/SOT-37
BF970 PNP 40V 30mA 160mW TO-50
--------------------------------------------------------------------------------------
